Suitable for food, pesticide, medicine, daily chemical and other industries. For liquid, powder, granule, thick body and so on the different material product may choose the different filling way. Packaging measurement accuracy.

Main features:

Host variable frequency speed control system: imported AC motor and frequency control, stable and reliable operation, low speed and high torque, even in the case of large load changes, the same excellent operation.

Servo feed system: Panasonic servo motor by pulse number is directly under the control of the feed screw rotation speed, stable and reliable performance and simple and quick to adjust.

Bag system: the bag making, sealing and filling is a relatively independent system. The two system is through the mechanical linkage and L C P (programmable logic controller) to coordinate linkage. As a result, it can be adapted to different packaging objects, packaging bag shape size.

Product packaging system: heat sealing packaging materials (polyethylene film, multi-layer composite film), automatic completion of a full automatic production equipment of bag making, measuring and filling and sealing packaging process. A flat bag is three sides sealing or four sealing. Choose different forms of filling machine, can be packaged for different products.

Integrated control system: the use of PLC programmable computer program controller, inverter, such as the composition of the high degree of integration, strong control, reliable operation. Application of touch screen technology to make the operation of the machine more reliable and convenient. Photoelectric sensor, encoder, proximity switches, and so on are advanced imported sensor components, so that the mechanical and electrical integration of the machine has been a perfect performance.

Double bag forming system: through the two vertical sealing device, so that each output connected bag, so as to improve the double the production capacity, but also can be in two different bags filled with different materials to meet the customer's special requirements.

Technical parameter:

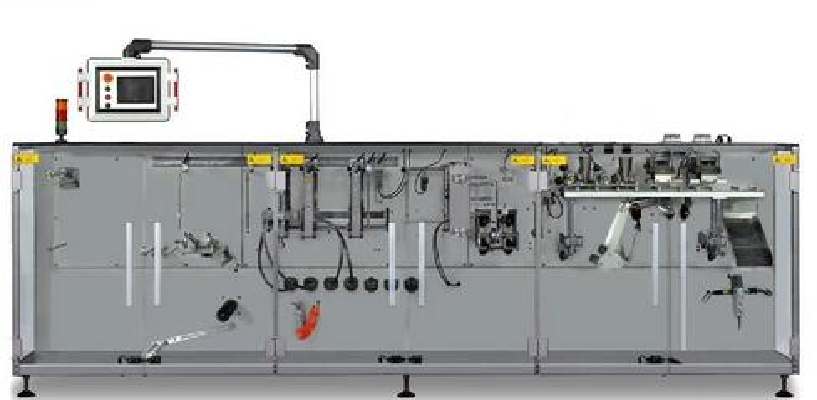

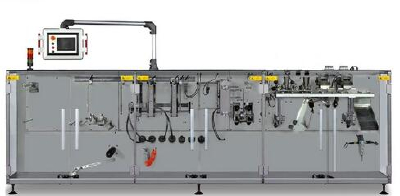

Model: R-180

Packing bag width: 85 mm -180 mm

Packing bag height: 100 mm -225 mm

Maximum packing: 400 ml

Packing speed: 40-80 bag / min

Measurement error: 1%

Roll film diameter: 500 mm

Power consumption: 4.5 kw

Gas consumption: 0.7 m3 / min

Machine weight: 750 kg

Machine size: 3360x970x2150 (mm)
